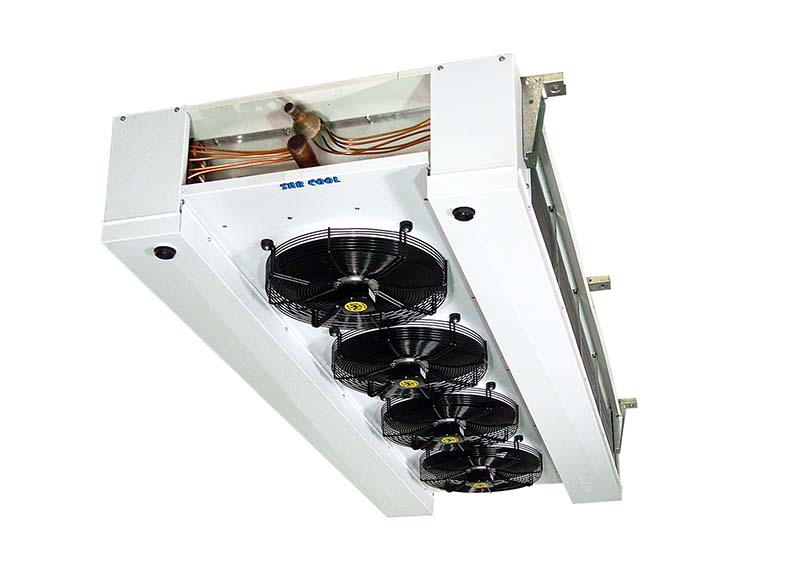

TS Air Evaporator

Specifications of the Coil

Advanced Coil Design:

• 5/8 inch tubing for high-efficiency heat transfer.
• Customizable fin spacing options: 6, 7, 10, and 12 mm.

Device Capacity

• Fully customizable production to suit varying capacities.

Body Features

• Unique casing made of galvanized steel with electrostatic coating.
• Special body design for enhanced durability.
• Internal Drain Tray: Made of aluminum to improve heat transfer efficiency and ensure complete ice melting without leaking into the drain hole.
• External Drain Tray: Specially designed structure with pressed sheets around the drain funnel to guide defrost water effectively.

Electrical Features and Fan

• 50 cm German-made fan by ZiehlAbegg, equipped with an electric motor protector (Overload) for fan safety.

Defrost Heater Specifications

• Defrost and drain heaters manufactured by Sedes, Italy, with heat-resistant silicone wiring enclosed in a junction box.
• Series wiring of heaters reduces potential difference to 190 volts, enhancing heater lifespan.
• Fully insulated heater terminals to resist moisture.
• Retaining clips for heater stability.
• Circular heaters around fan blades to prevent ice buildup (always active).
• Heaters for the drain funnel and pipe to prevent freezing in the drainage pathway (always active).

Additional Features

• Defrost thermostat with adaptable positioning for optimal defrost performance.
• Pre-wired electrical box with oversized terminals (includes fans with overload protection, drain heaters, defrost heaters, fan, drain funnel, and thermostat wiring).
• Compatible refrigerants: R-717, R-404a, R-134a, R-22.
• Pressurized with nitrogen to 5 bar.
• Suitable for freezing tunnels.
• All coils undergo post-production testing and degreasing.
