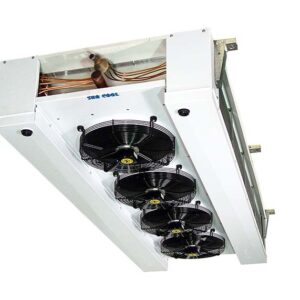

TF2 Evaporator

Coil Specifications

• Advanced Coil Tubing: 1/2 inch and 5/8 inch tubing for optimal heat transfer.
• Customizable Fin Spacing: Available in 5.5 mm, 8 mm, 10 mm, and 12 mm fin spacing for various applications (sub-zero and freezing tunnels).
• Evaporator TF2 Capacity: Designed with nominal capacities ranging from 50 to 150 kW, suitable for freezing tunnels and other applications.

Device Capacity

• Evaporator TF2 is produced with nominal capacities ranging from 50 to 150 kW.

Body Specifications

• Unique Casing: Made of galvanized steel with electrostatic paint coating for durability and aesthetics.
• Special Body Design: Aimed at enhancing structural strength and visual appeal. Hinged doors with locks on both sides of the evaporator allow easy access to the terminal and expansion valve for servicing and maintenance.
• Internal Drain Tray: Made of aluminum to improve heat transfer efficiency and ensure complete ice melting without leaking into the drain hole.

Electrical Features and Fan

• Fans: 63 cm diameter fans manufactured by ZiehlAbegg, Germany.
• Overload Protection: Built-in electric motor protection to safeguard fans.

Defrost Heater Specifications

• High-Quality Defrost Heaters: Manufactured by Sedes with heat-resistant silicone wiring enclosed in a junction box.
• Series Wiring: Heaters wired in series to reduce potential difference to 190 volts, thereby extending heater lifespan.
• Moisture-Proof Terminals: Insulated heater wiring to prevent moisture ingress.
• Fan Heaters: Circular heaters around fan blades to prevent ice formation (always active).
• Drain Heaters: Installed in the funnel and drain pipes to prevent freezing of drain water during discharge (always active).

Additional Features

• Defrost Thermostat: Flexible installation positions on the coil for optimized defrosting.
• Pre-Wired Electrical Box: Includes oversized terminals and wiring for all components (fans with overload protection, drain heaters, defrost heaters, fan heaters, drain funnel heaters, and thermostat)
